ОСНОВНИ ПОДАТОЦИ ЗА КОМПРЕСОРОТ
air filter material:

plastic

number of air filters:

2

air flow rate at 1 bar:

294.0 l/min

air flow rate at 10 bar:

118.0 l/min

air flow rate at 2 bar:

274.0 l/min

air flow rate at 3 bar:

235.0 l/min

air flow rate at 4 bar:

215.0 l/min

air flow rate at 5 bar:

196.0 l/min

air flow rate at 6 bar:

176.0 l/min

air flow rate at 7 bar:

157.0 l/min

air flow rate at 8 bar:

145.0 l/min

air flow rate at 9 bar:

137.0 l/min

air intake capacity:

412.0 l/min

drive type:

direct

number of cylinders:

2

oil quantity:

0.25 l

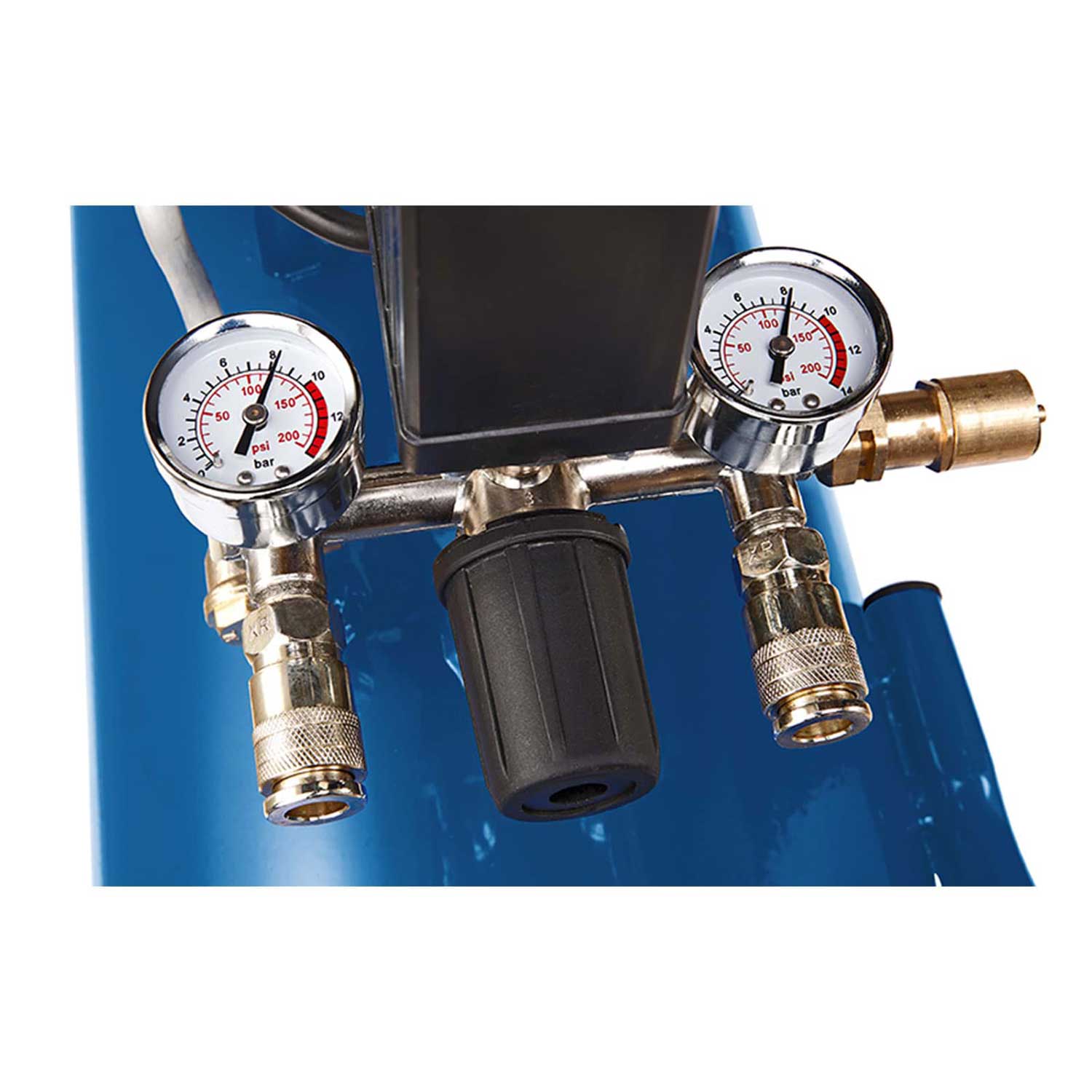

pressure manometer:

2

pressure pipe material:

aluminium

tank capacity:

50.0 l

quick coupler material:

alloyed steel

number of quick couplers:

2

quick coupler type:

NW7.2 (German Standard)

safety valve type:

A27X6-8T

tank filling time:

120.0 sec

wheel diameter:

204.0 mm

wheel material:

plastic with rubber tread

working pressure bar max:

10.0
ЕЛЕКТРИЧЕН ПОГОН


appliance class:

Class I

continuous power consumption S1 (in W):

2200.0 W

efficiency:

78.0 %

frequency:

50 Hz

insulation class:

B (max. motor temp. 130°C)

motor brake type:

none

motor protection:

yes

motor speed max:

2850.0 1/min

nominal current:

10.0 A

power consumption in operating mode 1:

2200.0 W

protection class electro:

IP 20

type of motor electro:

Induction motor

voltage:

230 V
ЕМИСИНА НА ЗВУК
guaranteed sound power level Lw(A):

97.0 dB

measured sound power level Lw(A):

91.2 dB

sound power level Lw(A):

91.2 dB

sound pressure level Lp(A):

71.2 dB

uncertainty KpA:

2.03 dB

uncertainty KwA:

2.03 dB
ЕЛЕКТРИЧНИ КОНЕКЦИИ
cable length:

2000.0 mm

motor cable inlet :

yes

phase changing switch 400v in plug new:

no

protection class :

IP 20

switch with no voltage release new:

no
